Products

DESCRIPTION

Basic Info.

Model NO.	MEB-series
Plastic Type	PP PE Bottle, Film and So on
Screw	Single-Screw
Automation	Automation
Computerized	Computerized
Certification	ISO9001:2008, CE
Blade Material	SKD-11
Final Film Moisture	<1%
Manpower	3-5 Persons
Plant Area	> 200-500 Square Meter
Process Material	PP PE Bottle
Contactor	Siemens
Machine Material	Stainless Steel or Carbon Steel
Capacity	300-3000kg/Hr
Name	Plastic Recycling Machinery
Motor Brand	Siemens
Transport Package	Standard Package Plastic Recycling Machinery
Specification	MEB-300-3000 plastic recycling machinery
Trademark	Mooge plastic recycling machinery
Origin	China Plastic Recycling Machinery
HS Code	84778000
Production Capacity	20line/Year Plastic Recycling Machinery

Packaging & Delivery

Package Size 200.00cm * 200.00cm * 200.00cm Package Gross Weight 1000.000kg

Product Description

PP PE Bottle Recycling Machine

1. Product Description
• This plastic recycling machine is designed and manufactured by MOOGE TECH, which is widely used for waste rigid plastic HDPE bottle, PP kettle, etc.

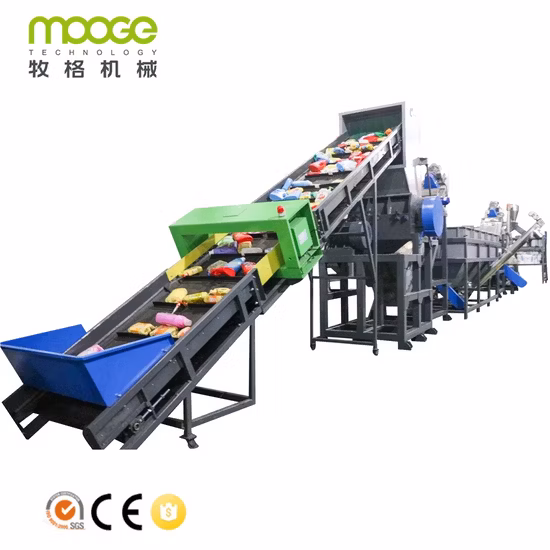

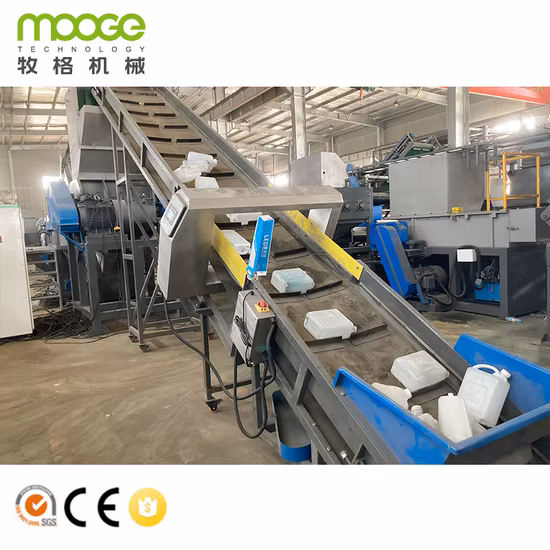

• It used to recycling the waste HDPE/ LDPE/ PP bottles and buckets, hollow containers and so on. The production line including the conveyor belt, metal detector, Plastic Wet crusher, floating washing tank, high speed frication washer, centrifuge dewatering machine drying system and label separating machine, material collecting packing system.
• We also supply plastic pelletizing line / plastic granulator to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment.
• This plastic recycling machine can be displayed "L" or "U" shape according to clients' workshop.
• We can also customize the washing line according to client's material and product requirement.
2. Features
(1) Automatically working, conveying material, crushing, washing, drying.
(2) Finished product size: <16mm
(3) Moisture content: <3%
(4) High efficiency, safety control, large capacity
3. Working Flow (500kg/h advanced system)

SN	Item Name	Function
1	Belt conveyor	Conveying dirty plastic bottles into crusher. If too much scrap iron, metal detector may be needed.
2	S-series crusher	With water, cut plastic bottles into small size
3	Friction washing loader machine	Washing out the sand, soil and loading the material.
4	First Floating washing tank	Washing out the dirty from the material.
5	Screw loader	Load bottle flakes into the next step.
6	Horizontal friction dewatering machine	Washing out labels, dirty and remove dirty water.
7	Second Floating washer tank	Washing out the dirty from the material.
8	Screw loader	Load bottle flakes into the next step.
9	Dewatering machine	Remove the water from the material.
10	Hot air drying system	Drying the bottle flakes.
11	Storage hopper	Collect the flakes.
12	Control cabinet	Control the line on/off (famous brand such as Siemens, etc.)

4. Technical Parameter

Model	Capacity	Installed Power	Hot Washing	Manpower	Area Required (L*W*H)
MEB-300	300kg/hr	90KW	Optional	1-2	22m*5m*3.5m
MEB-500	500kg/hr	115KW	Optional	2-3	25m*6m*5.5m
MEB-1000	1000kg/hr	215KW	Optional	4-5	35m*6m*5.5m

5. Detailed Images

Name: Crusher Machine
Function: Crushing the bottles into PET flakes
Blade material: SKD-11
Motor Brand: SIEMENS
Material: SUS304

Name: Floating Washing Tank
The roller is specially made can have more washing for lakes but less water take out Bottom with Positive and negative screw to pushing the dirty into middle With a side screw loader to loading out the sinking material

Name: Horizontal Centrifuge Dewatering Machine
Function: friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water
