Single Shaft Shredder Recycling Machine for Electric Cable

XR Serious single shaft shredder machine Feature & Function: 1. Single shaft shredder has characters as follows: single

DESCRIPTION

Basic Info.

Model NO.	XR600, 800, 1000 ETC
Certification	CE, ISO9001:2008
PLC	Siemens
Blade Material	SKD11 or D2
Contactor	Schneider
Gearbox	Guomao
Motor	Simo
Transport Package	Wooden Box or Wooden Panel with Fumigation
Trademark	S&K
Origin	Jiangsu Zhangjiagang
HS Code	8477800000
Production Capacity	Customized

Product Description

XR Serious single shaft shredder machineFeature & Function:
1. Single shaft shredder has characters as follows: single shaft shredder properties as follows: strong, durable. It is suitable to recycle a variety of bulk solid materials, refractory materials, plastic containers and plastic barrels, plastic films, fibers, paper. Shredded particles can be small to 20mm according to different needs. We can provide all kinds of feed hopper; low speed rotary cutter in accordance with customer needs , which will be low noisy and energy saving.2. Single shaft shredder consists of a knife disc and a static knife to complete shredding material. Cutter is composed of a base shaft and several shape quadrilateral knife block. The knife block has 4 blades, can be replacing the use of. The knife block along the axis of the base is in multiple rows into type V, and fixed with screws in the radical axis, rotated with the based shaft together, finally comprise a knife disc. The two static knife is fixed on the machine frame. The material is sent to the cutter by the horizontal hydraulic cylinder. The speed is stable and adjustable, and the propulsive force is large and uniform. It is applicable to the recovery of a variety of bulk solid materials, refractory materials, irregular plastic containers and plastic barrels, tubes, films, fibers, paper etc. Spindle speed is 45 ~ 100 rpm/min.3. We can offer a variety of rotor configurations to suit different applications.Such as:High Performance Rotor,Hard Material Rotor and Soft and Film Rotor.4. When customers choose the rotor, we can also offer different knives holder to suit different requirement. Such as:Welded Knife holders,Assembled Knife holders and CNC cutting knife holders.

Technical parameters:

Model	Motor (kw)	Diameter of rotor (mm)	Speed (rpm)	Rotating Knife (pcs)	Fixed Knife (pcs)	Hydraulic Motor power (kw)	Weight (kg)
XR600	22	Φ260	75	26+4	4	2.2	2400
XR700	30 or 37	Φ280	75	32+4	4	3	3200
XR800	45	Φ400	75	34+4	4	3	3700
XR1000	55	Φ400	75	46+4	4	4	4500
XR1200	75	Φ500	75	68+4	4	5.5	6700
XR1500	90 0r 110	Φ550	75	84+6	6	7.5	9000
XR2000	132 or 160	Φ600	75	112+6	8	11kw	13000

Note:The above Technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

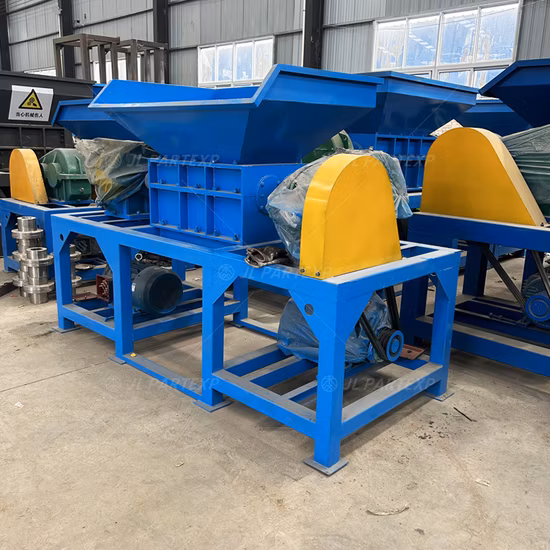

Machine photo:

Single Shaft Shredder Recycling Machine for Electric Cable
